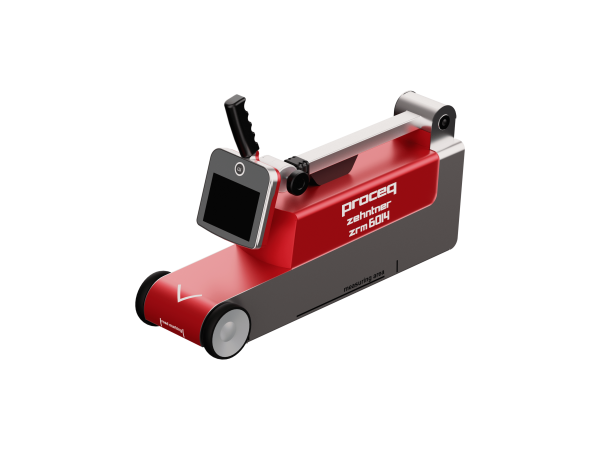

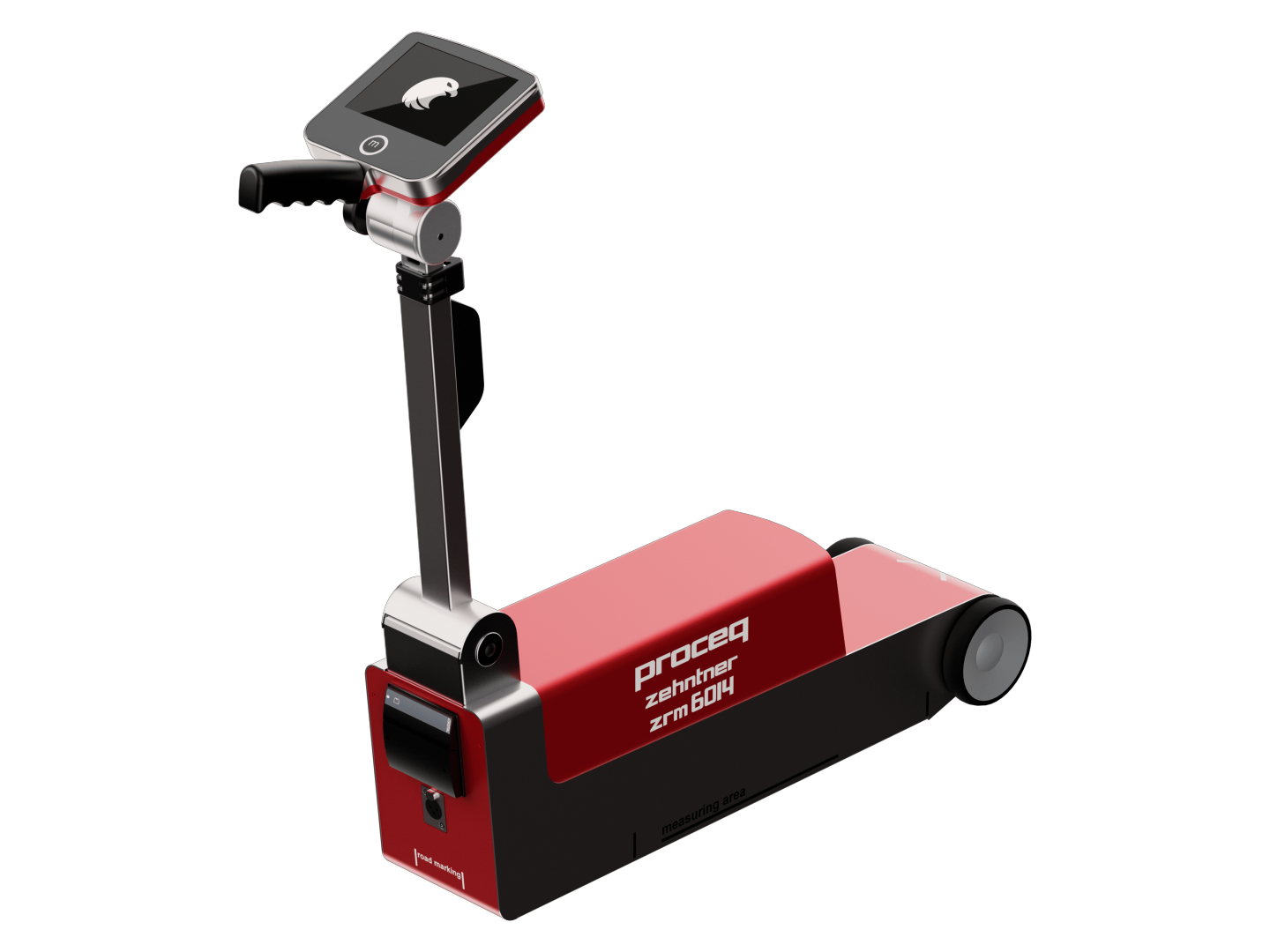

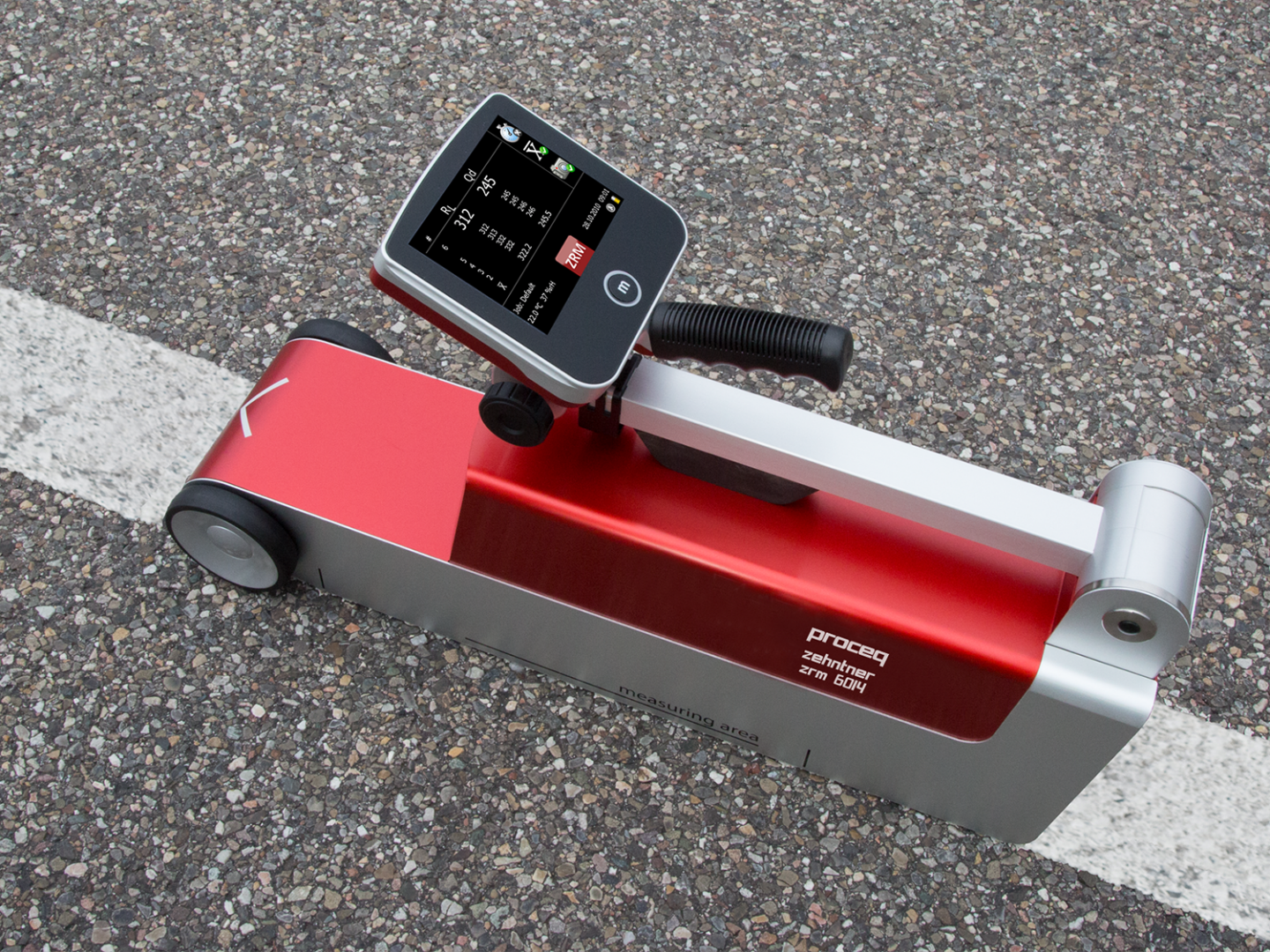

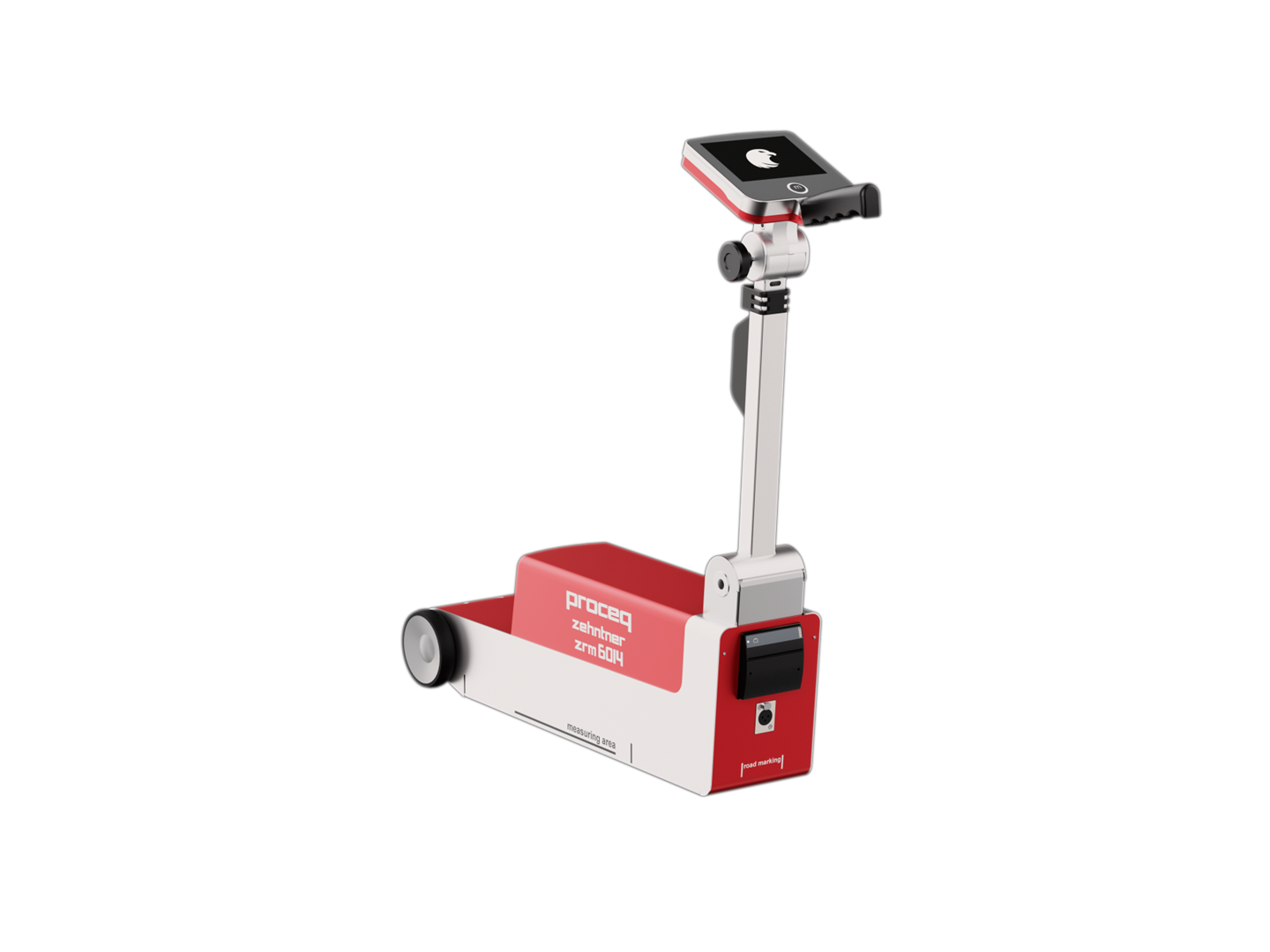

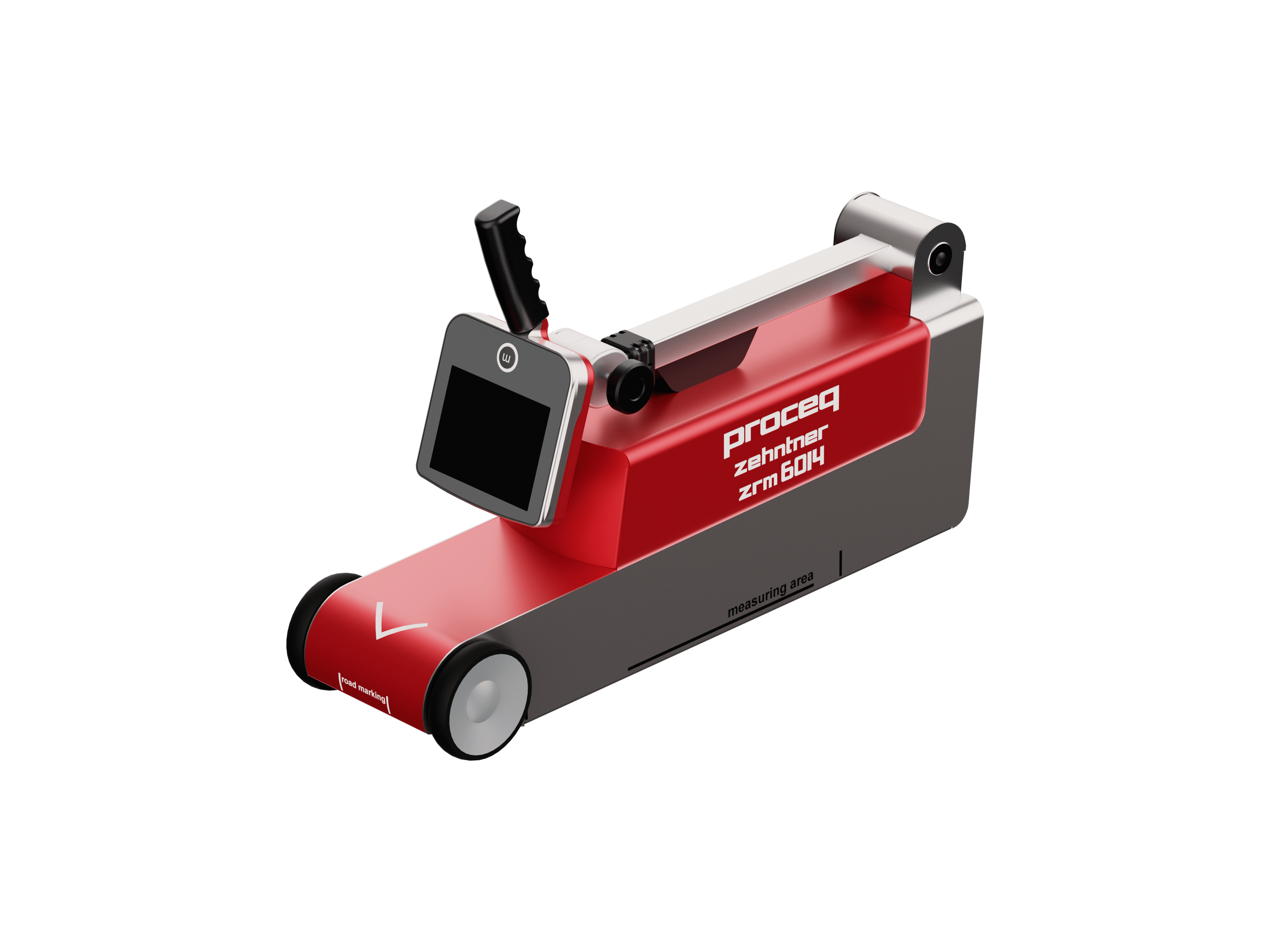

Zehntner ZRM6014 Marking Retroreflectometer RL-Qd
Leading retroreflectometer factory for pavement markings, road signs & reflective cloths
Application
- Determination of night visibility (RL) of road and airport markings
- Determination of day visibility (Qd) of road and airport markings
- Use on all types of road and airport markings
- Field and laboratory use
- Quality assessment
Product Summary
1. Introduction:
Zehntner ZRM6014 marking retroreflection measurement is a portable retroreflectometer for pavement markings. It can measure both night visibility (RL) and day visibility (Qd) for all types of road and airport markings. It is suitable for road traffic authorities, road labs, project acceptance agency, road marking paint factories, road marking contractors, etc.
2. Advantages:
- Versatility: Fold-away telescopic handle and wheels standard allowing for superior portability. Gather data for night and day visibility effectively, anytime and on any road surface.
- Accuracy: Intelligent electronics paired with Swiss Made optics deliver a new benchmark of measurement, accuracy, and ultrafast retroreflection measurement (RL and Qd) in about 2 seconds.
- Productivity: Refine your measurements with precise geolocation and high-res images. The user-friendly software makes comprehensive reports quickly and with ease.
3. Standards:
- ASTM E1710-18
- ASTM E2177
- ASTM E2302
- CIE 54.2
- DB 51 T2429
- EN 13197
- EN 1436
- GB/T 16311 ( United Kingdom )
- GB/T 21383 ( United Kingdom )
- JT/T 690
Tech Specs
| Model: | Proceq/Zehntner ZRM 6014 |
|---|---|
| Display: | Touchscreen 5.7“ colour TFT (LCD), LED backlight, VGA resolution |
| Memory： | 1 GB internal flash memory |
| Measurement Modes： | RL dry (night visibility) |
| Measuring Area： | (WxL): 52mm x 218mm (2.05" x 8.58") |
| Measuring Range： | RL: 0 – 4’000 mcd•m-2•lx-1 |
| Measuring Accuracy： | Repeatability ± 2 % |
| Observation Angle： | EN 1436 & ASTM E2302: 2.29° |
| Illumination Angle： | RL: EN 1436: 1.24° |
| Reporting software: | Includes mapping and data analysis software MappingTools |
| Operating Temperature: | -10°C to +50°C (14°F to 122°F) |
| Weight： | 7.6 kg (16.76 lbs ) |
| Technology： | High-resolution Camera |
