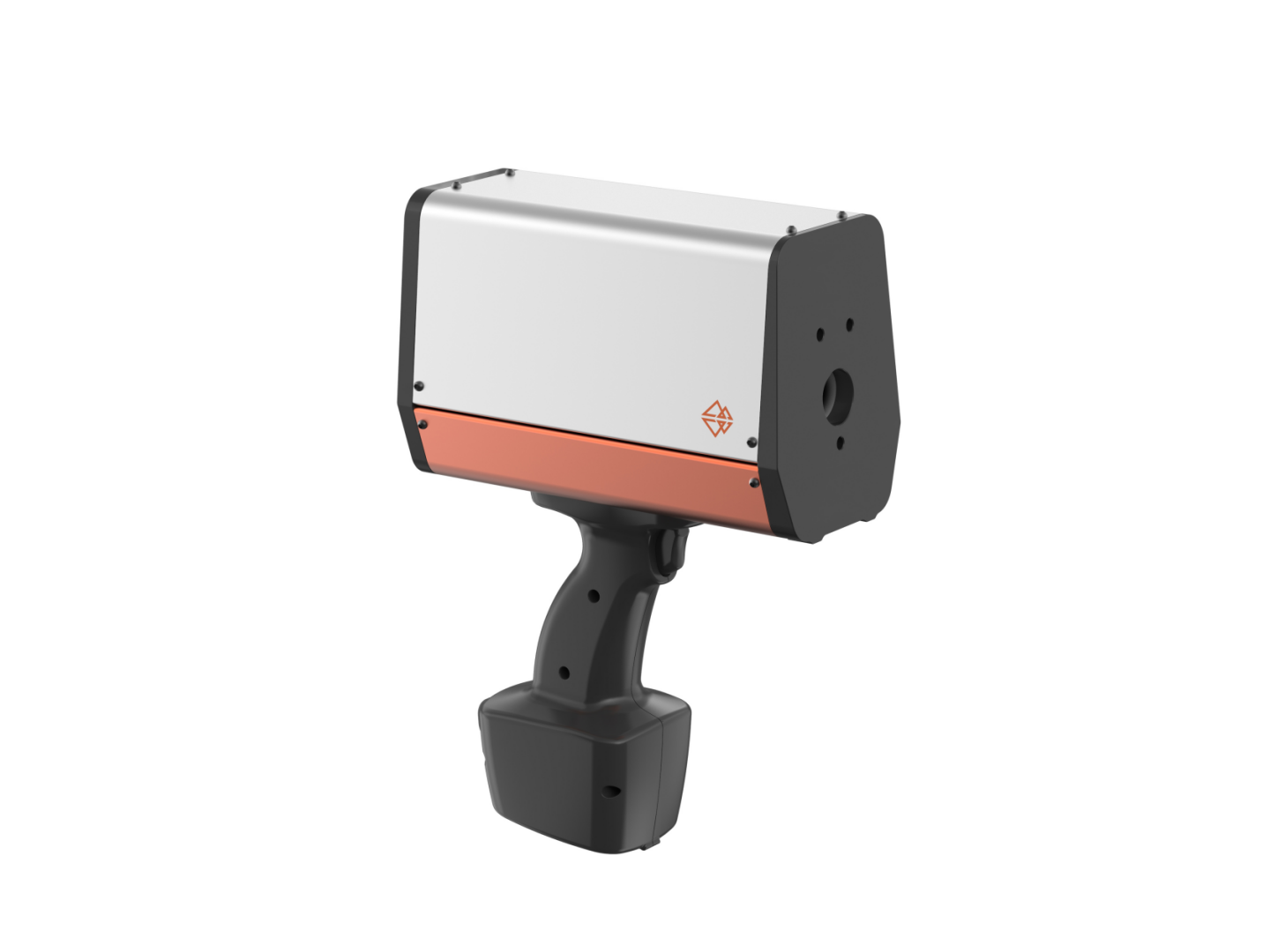

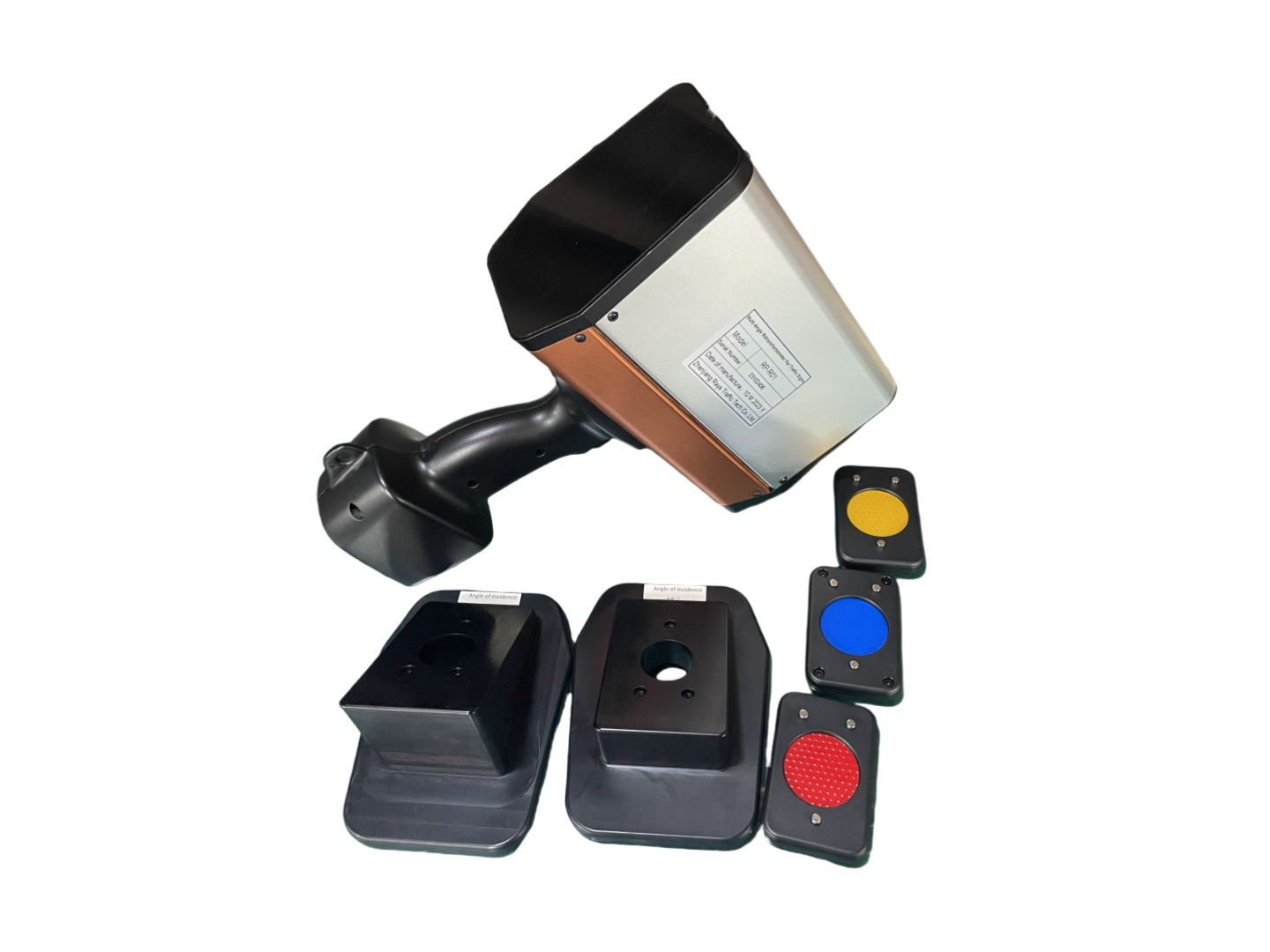

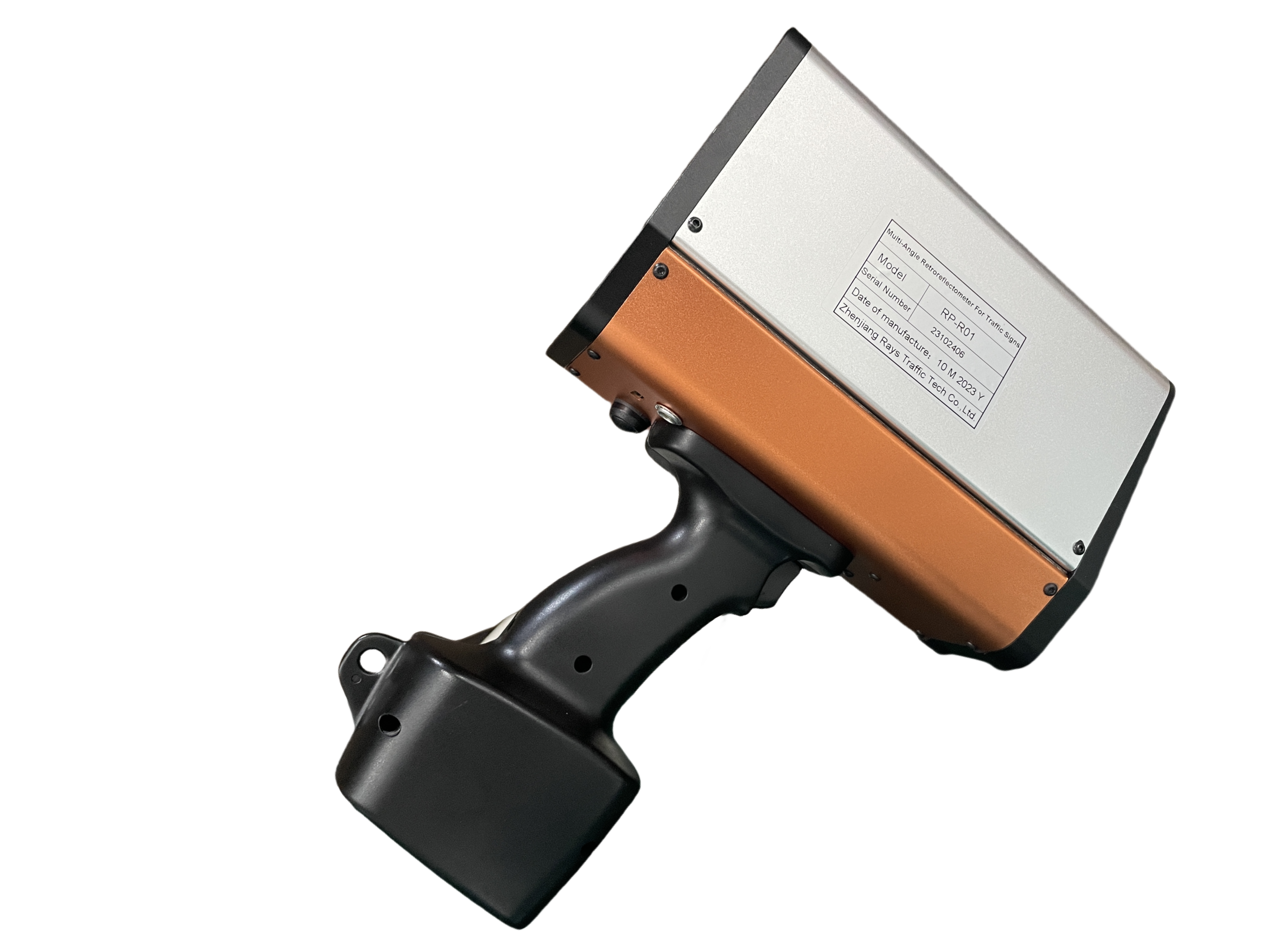

RP-R01 Multi-angle Road Sign Retroreflectometer
Leading retroreflectometer factory for pavement markings, road signs & reflective cloths
Application
- Measurement of coefficient of retroreflection RA and R’ at a 0.2°, 0.5°, 1° angle, 0.2~2° observation angle is optional
- Standard entrance angle are -4°, 15°, 30°, other angles customized
- Reflective sign construction sites and laboratory use
- Reflective sign & cloth factories production quality control
- Road authories projects inspection
Product Summary
1. Introduction:
RP-R01 Road Sign Retroreflectormeter is multi-angle visibility measurement of coefficient of retroreflection RA and R’. It is used for measuring retroreflection of traffic signs, safety clothing, safety tapes and reflective materials. RP-R01 can measure 0.2°, 0.5°, 1° three different observation angles at the same time, other 0.2~2° observation angle can be customized. Standard entrance angle are -4°, 15°, 30°. Other special entrance angles can be customized. RP-R01 is suitable for road traffic authorities, optical labs, road test agency, road sign contractors. Traffic sign, safety closing and reflective materials manufacturers also need retroreflectormeter to check their products quality.
2. Advantages:
- Dual angle retroreflectometer for road signs & reflective materials
- Automatically determine measurements data qualified or not
- Measure three different observation angles at the same time
- Easy visible touch screen in bright sunlight site and laboratory
- Over 100000 measurement report stored capacity
- Portable blue tooth printer optional
3. Standards:
RP-R01 Road Sign Retroreflectometer is designed and produced based on national standard test mathod as below:
- EN 12899 Fixed, vertical road traffic signs. Most relevant is Part 1: Fixed signs and Part 4: Factory production control
- ASTM E1709 Standard Test Method for Measurement of Retroreflective Signs Using a Portable Retroreflectometer at a 0.2 Degree Observation Angle
- ASTM E2540 Standard Test Method for Measurement of Retroreflective Signs Using a Portable Retroreflectometer at a 0.5 Degree Observation Angle
Tech Specs
| Model: | RP-R01 |
|---|---|
| Display: | Real time voice broadcast, 5’’ touch screen |
| Light source color: | 2856±50K(CIE A light source) |
| Memory: | Over 10,000 data |
| Measuring Range: | 0 – 4000 cd·lx-1·m-2 |
| Measuring Accuracy: | Repeatability ± 2 % |
| Observation Angle: | Standard with angle 0.2°, 0.5°, 1°, 0.2°~2°(Customized) |
| Entrance Angle: | Standard with angle -4°, 15°, 30°, -45°~45°(Customized) |
| Operating Temperature: | -15℃~+60℃ |
| Operating humidity: | <98%, no frost |
| Printer: | Portable blue-tooth printer(optional) |
| Language: | Chinese, English, other languages(customized) |
| GPS: | GPS (optional) |
| Battery: | Working time>30h after charging, 12V/5.2Ah, adaptor DC 15V |
| Dimensions(L*W*H): | 230mm*110mm*330mm |
| Weight: | N.W. 1.9KG, G.W. 8.9kg |
| Warranty: | 12months |
